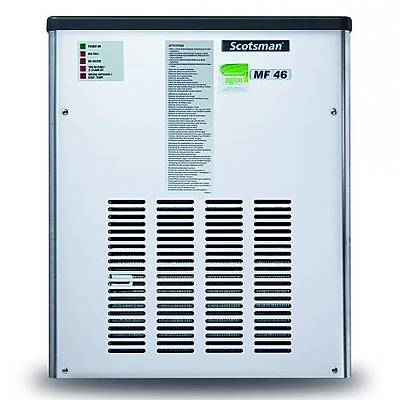

Scotsman MF 46 Haznesiz Kar Buz Makinesi

• Hermetic compressor. Stainless steel auger and freezing cylinder (evaporator). Equipped with an electronic control board.
• Ice breaker made in specially strengthened alloy, allowing for greater extrusion pressure to deliver a dryer-quality of ice (85% dry).
• Long-lasting stainless steel ball-bearings. Double protection - electronic rotation sensor and drive coupling - on gear motor and gear reducer.
• Low-water sensor protection on refrigeration and gear motor system. Optical ice level sensor for machine shut down.
• Stainless steel side panels in scotch-brite finish, with rounded corners for enhanced ease of cleaning and aesthetics.
• Side panels are removable on all four sides to ease maintenance and after-sales service operations.
• PS plastic top cover.
• Reduced height to ease installation.

MF 46 Superflake ice Residual water content 15%

REFRIGERANT GAS R404A

VOLTAGE V/Hz/ph 230/50/1 230/60/1

OPERATING REQUIREMENTS

Minimum Maximum
Air temperature 10°C / 43°C
Water temperature 5°C / 38°C
Water pressure 1 bar (14 psi) / 5 bar (70 psi)
Electrical voltage -10% / +10%

Condensing system: Air cooled, Water cooled
Max daily production: 320 kg
^{(referred to the standard model)}
Dimensions without legs: W 538 mm D 663 mm H 645 mm
Dimensions with legs: W 538 mm D 663 mm H 645 mm
