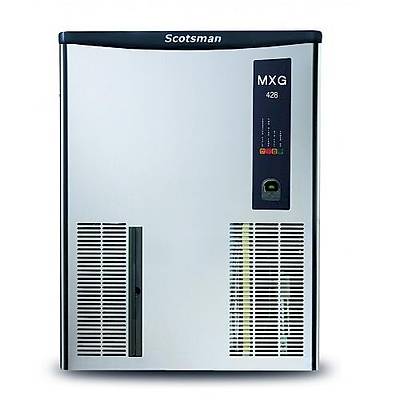

Scotsman MXG 428 Haznesiz Gurme Buz Makinesi


• Individual transparent solid cube: each single cube is an artwork: crystal clear and perfectly shaped, faithful to the Scotsman tradition.
• Global standard footprint: strictly follows international imperial standard commonly adopted in the industry of reference.
• Agion: the technology that makes products cleaner and longer lasting with built-in protection working 24/7 to resist the growth of microbes and the development of unpleasant odors.
• Electronic control: ambient and water temperatures may change throughout the years but your ice will stay the same.
• External indicator lights: keeps ice maker’s operations under constant surveillance.
• Front access condenser air filter: a do-it-yourself cleaning operation that saves time and money and makes your ice maker live longer.
• Clean alert: advises with a blink when it’s time to clean the filter.

MXG L 428 Large Gourmet 39 g Ø 38 x H 41 mm
MXG M 428 Medium Gourmet 20 g Ø 30 x H 34 mm
MXG S 428 Small Gourmet 8 g Ø 21 x H 25 mm


CONDENSING SYSTEM

Air cooled
Water cooled

REFRIGERANT GAS R404A

VOLTAGE V/Hz/ph 230/50/1 230/60/1

OPERATING REQUIREMENTS

Minimum Maximum
Air temperature 10°C / 43°C
Water temperature 5°C / 38°C
Water pressure 1 bar (14 psi) / 5 bar (70 psi)
Electrical voltage -10% / +10%

Max daily production: 190 kg
^{(referred to the standard model)}
Dimensions without legs: W 568 mm D 704 mm H 721 mm
Dimensions with legs: W 568 mm D 704 mm H 721 mm
